ThermaShield® Tube

A Thermal Buffer Between Cables and High Temp Environments

ThermaShield® creates a thermal buffer between your wires, hoses and cables and the high temperature environments surrounding them. ThermaShield® is engineered by laminating an aluminized metallic heat shield to a layer of strong, tightly braided fiberglass insulation. This system provides superior protection from radiant heat by reflecting it away from sensitive electronics, wiring and hoses.

The four styles of ThermaShield® Tube, Convoluted, Wrap and Flat provide a full range of solutions for any application. The Wrap and Flat products use a very aggressive, high temperature adhesive that eliminates the need for high-temp mylar tape or other adhesive.

ThermaShield® products will endure temperatures up to 1,200°F without delaminating, turning brittle or suffering adhesive failure. They are ideal in any situation where protection from radiant heat is a primary concern.

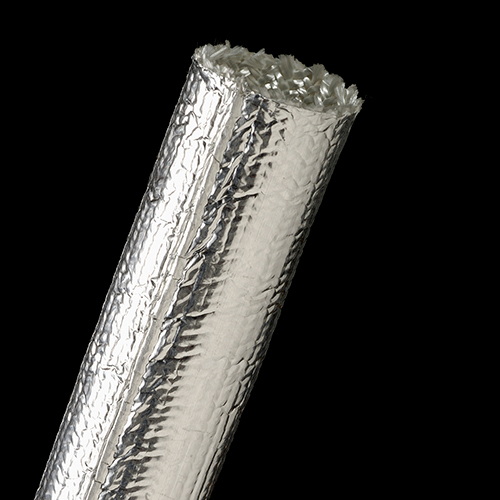

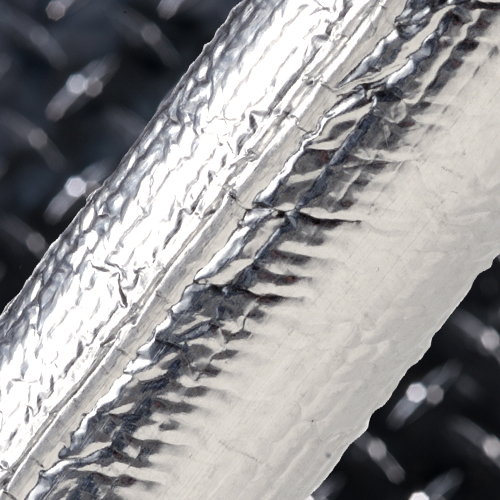

TTN-1.jpg TTN-3.jpg TTN-4.jpg

Certifications:

TTN

Download

TDS-TTN.PDF

ThermaShield Tube - Technical Data Sheet

Download (4.05MB)

TTN.PDF

ThermaShield Tube - Catalog Page

Download (2.3MB)
